GL-6000S 200M depth Full Hydraulic Crawler Rotary Construction Drilling Rig for Construction Work
Feature:
1. A hydromechanical variable transmission is used by the power head. It complies with the needs of various drilling processes when outfitted with various power heads.
2. A hydraulic clamp and shackle mechanism that reduces work effort and speeds up installation and replacement.
3. The direct-acting load feedback and fine-tuning variable hydraulic system allow for excellent efficiency and minimal energy use as the power changes with the load.
4. Long feed stroke and high rotational torque increase drilling efficiency.
5. The direct-acting load feedback and fine-tuning variable hydraulic system allow for excellent efficiency and minimal energy use as the power changes with the load.
6. A drilling rig with a multidirectional luffing mechanism may drill in many rows and at various angles from a single station.
7. The hydraulic system's primary imported components have a steady, dependable, and lengthy lifespan.
8. Fast and precise hole positioning is made possible by a display device that displays the speed of the power head's rotation, lifting speed, and perpendicularity column.
APPLICATION
Technical Data:
| Mode | GL6000S |
| Motor | Motor 55kW | Diesel 56kW |
| Weight | 7.9t |
| Size | 5600mm×2000mm×2930mm |
| Speed | High 5.06 km/h | Low 2.6km/h |
| Climbing Capacity | 20° |
| Diameter Pile |
| Max Diameter | Max 2.2m |
| Max Depth | 200m |
| Power Head |
| Feeding Stroke | 3m |
| Feeding Force | 58kN |
| Rotation Speed | Low 8～50.6r/min |
| High 16～101r/min |
| Lifting Power | 110kN |
| Torque | 3000N.m～6000N.m |
| Borehole |
| Depth | 50～200m |
| Diameter | 110～400mm |
| Drill pipe (diameter x length) | 60～89×2500mm |
| Horizontal Hole Height | High 3450mm | Low 338mm |
| Column |
| Sliding Stroke | 1200mm |
| Pitch Angle | 120° |
| Swing Angle | 0°～90° |
| Drill Arm Pitching Angle | Elevation angle 35° | Pitch Angle 16° |
| Hydraulic System |
| Rated Flow | Main Pump | 100L/min |
| Sub-pump | 30L/min 15L/min |
| Rated Pressure | Main Pump | 21MPa |
| Sub-pump | 18MPa |
|
|

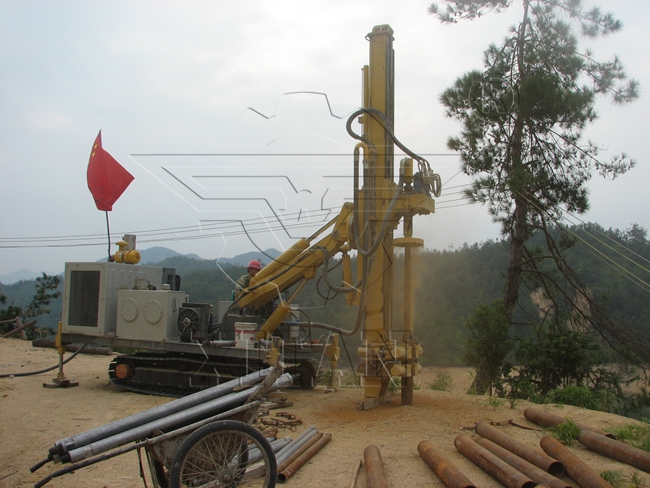

GL-6000S 200M depth Full Hydraulic Crawler Rotary Drilling Rig for Construction Work Images
|
